Multi-cavity mold plate
AL 6061 · 3-axis mill · 4-up cavities · ±0.02 mm
Four matched cavities in one setup — alignment between cavities held without re-fixture.
Work · DWG NO. BP-WEB-003
Low-volume CNC parts, machined and finished.
Representative parts off our floor. Client drawings stay confidential — every photo here is shared without client marks, and new case studies are added as shipments clear.
Mirror-finish precision shafts
Steel · Swiss-type turning · batch · Ra-mirror shoulders
Stepped shafts run bar-feed in one pass; shoulders finished to a mirror for a sealing application.
Black-anodized sensor housings
AL 6061 · mill + Type II black anodize · repeat order
Milled, anodized and laser-marked under one roof — repeat batches ship on a fixed lead time.
Slender threaded shafts, black oxide
Steel · Swiss-type + thread milling · black oxide
Long, thin, threaded — the geometry that general lathes re-chuck twice and Swiss lathes don't.
Large block, dual-radius pockets
AL 6082 · 3-axis mill · large envelope · ±0.05 mm
Big-envelope milling with matching radii — roughing and finishing strategies tuned to hold flatness.

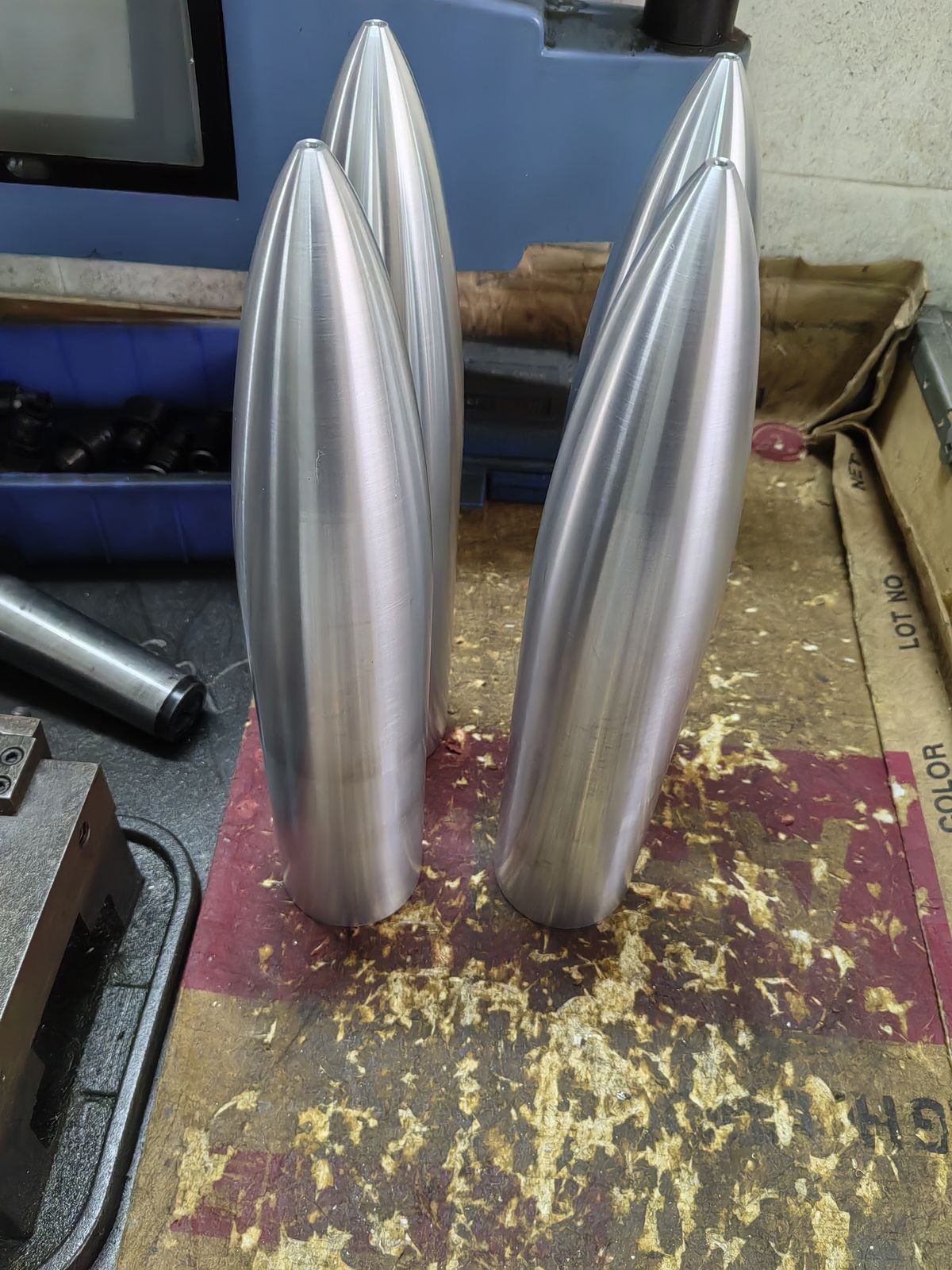

Polished stainless assemblies
Stainless · turn + mill + polish · cosmetic grade
Turned bodies with milled flats, polished to a cosmetic finish for a visible assembly.

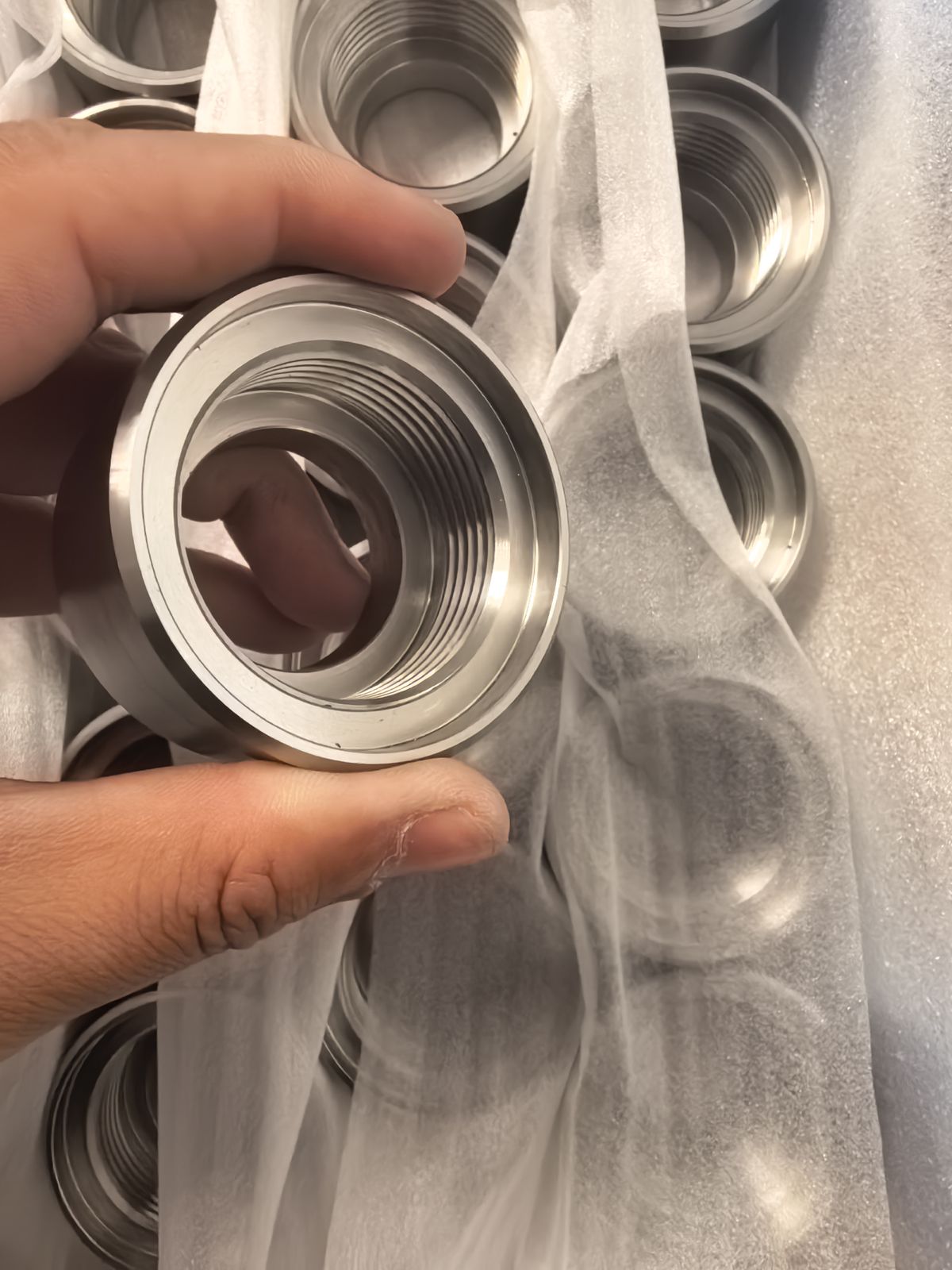

Stainless threaded fittings
Stainless · turning + thread rolling · batch
Tapered thread bodies with batch-consistent gauge fit; threads rolled for strength where specified.
Curved multi-feature brackets
AL 6061 · 3+4-axis mill · prototype to repeat batch
Compound-angle geometry that started as a 5-piece prototype — same fixtures now run the repeat orders.
